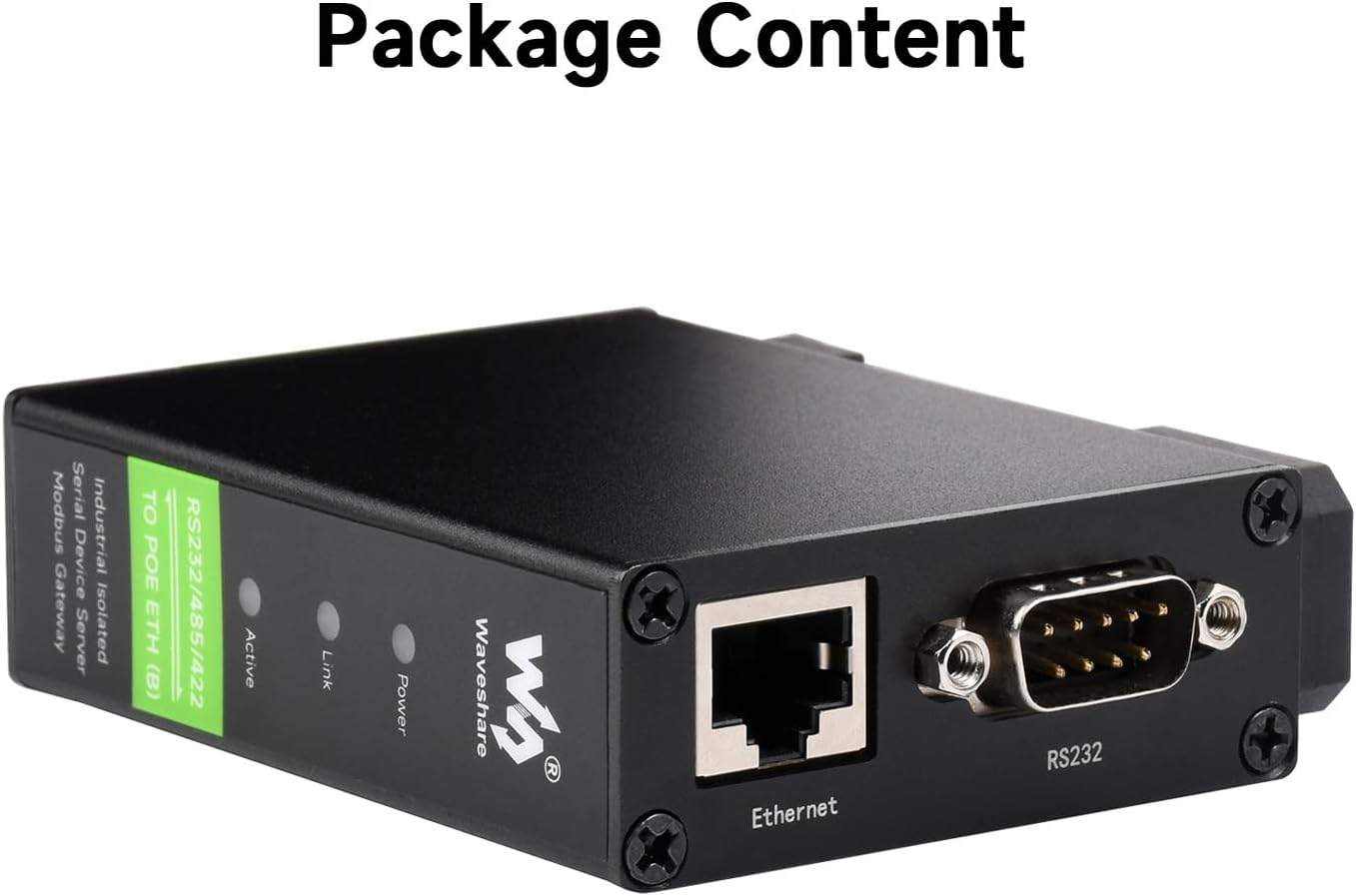

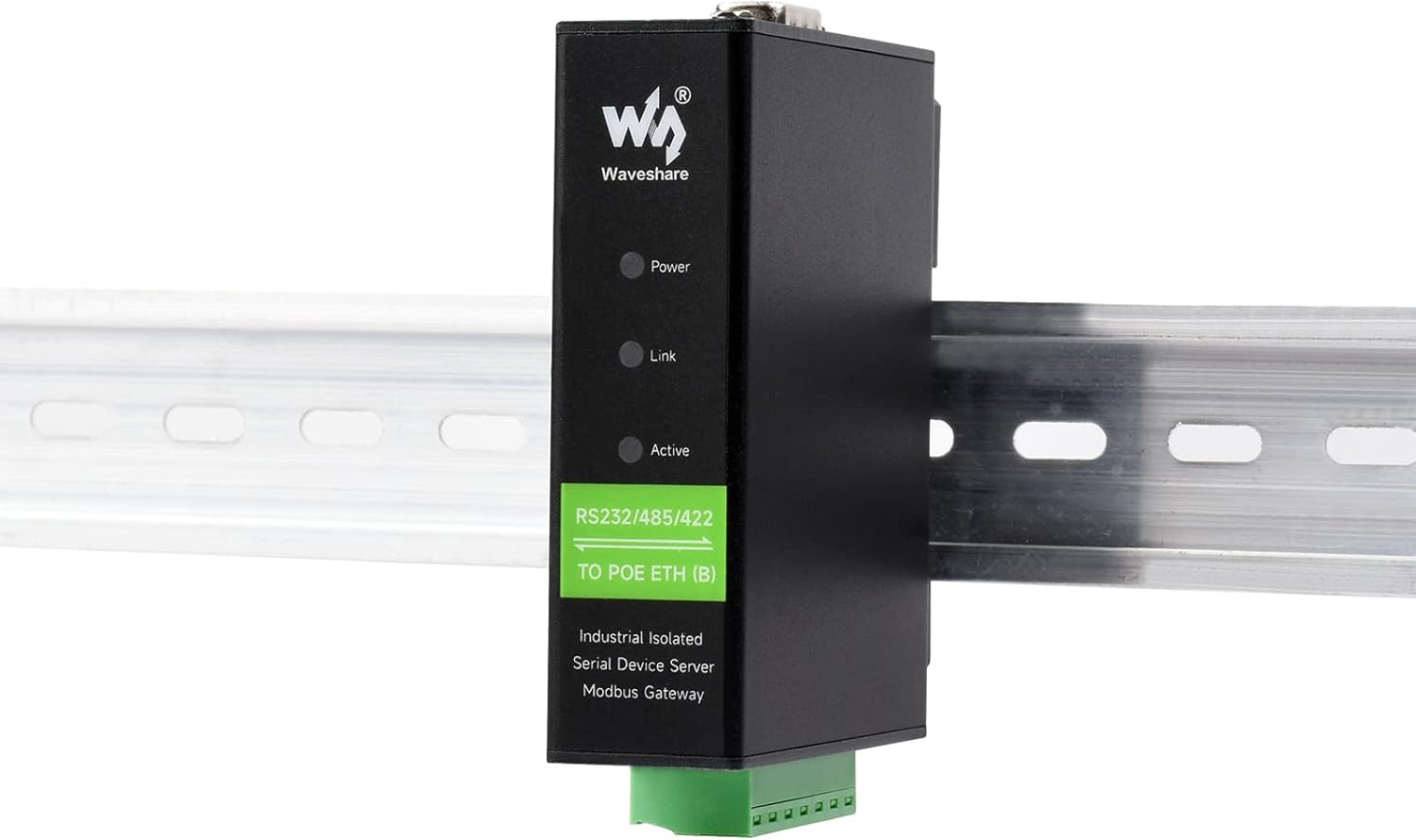

Waveshare Rail-Mount Serial Server RS232/485/422 to Ethernet

Caratteristiche principali

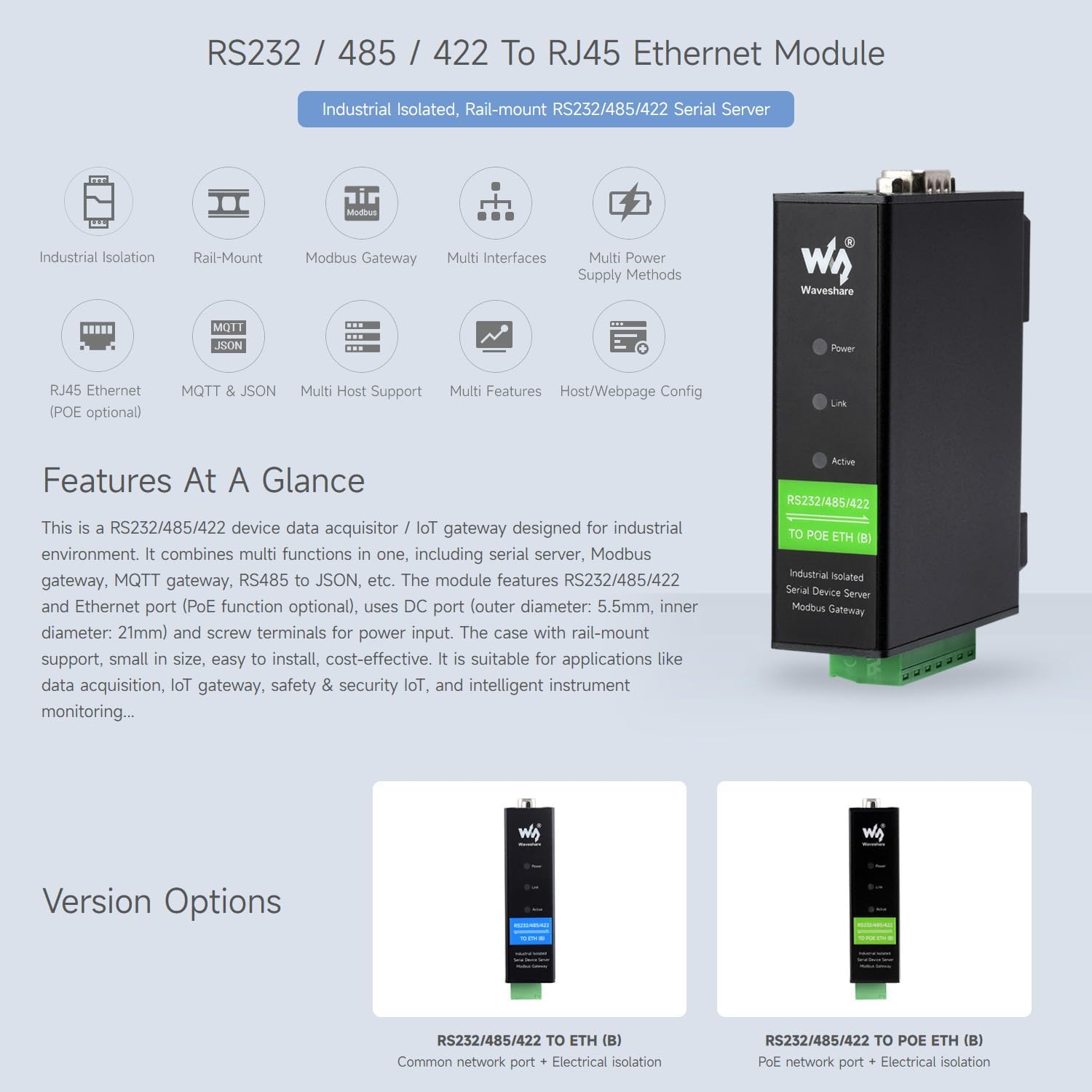

• This is an RS232/485/422 device data acquisitor/IoT gateway designed for an industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232/485/422 to JSON, etc. It is very suitable for collecting the data of RS232/485/422 and sensors in the industrial field, including local network collection or uploading to the data that the cloud server autonomously collects and sends.

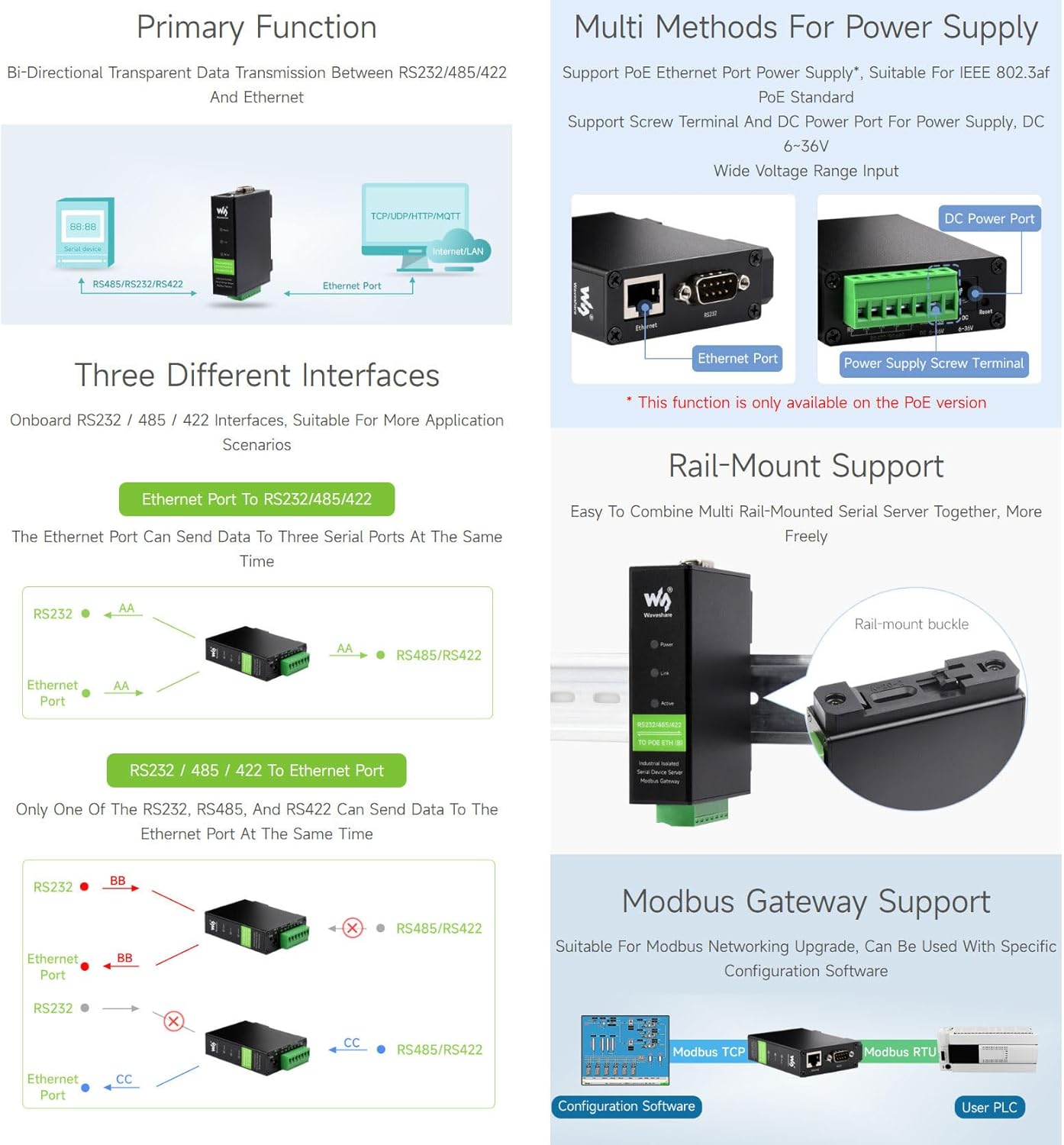

• Bi-directional transparent data transmission between RS232/485/422 and Ethernet. Onboard RS232 / 485 / 422 interfaces, suitable for more application scenarios. The ethernet port can send data to RS232/485/422 at the same time. Only one of the RS232, RS485, and RS422 can send data to the Ethernet port at the same time.
• Support PoE ethernet port power supply, suitable for IEEE 802.3af PoE standard. Support screw terminal and DC power port for power supply, DC 6~36V wide voltage range input. Suitable for modbus networking upgrade, can be used with specific configuration software.
• Supports TCP server / TCP client / UDP mode / UDP multicast. Multi hosts roll-polling support,different network devices will be identified and responsed respectively. No more crosstalk issue while communicating with multi network devices.

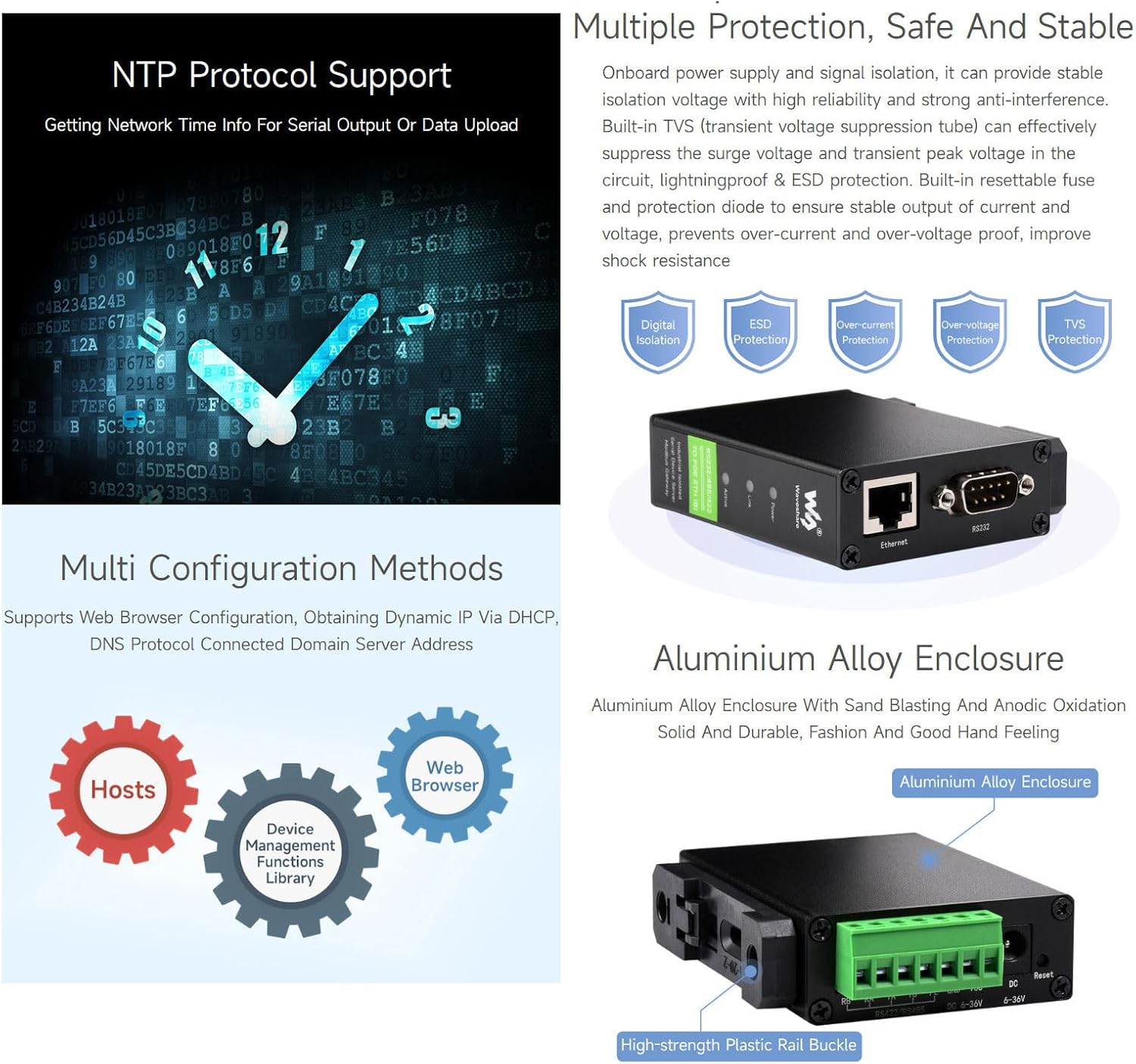

• Supports custom heartbeat package and registration package functions: it can facilitate communication with the cloud and device identification. Support Web browser configuration, support DHCP to obtain IP dynamically, and DNS protocol to connect domain name server address.
