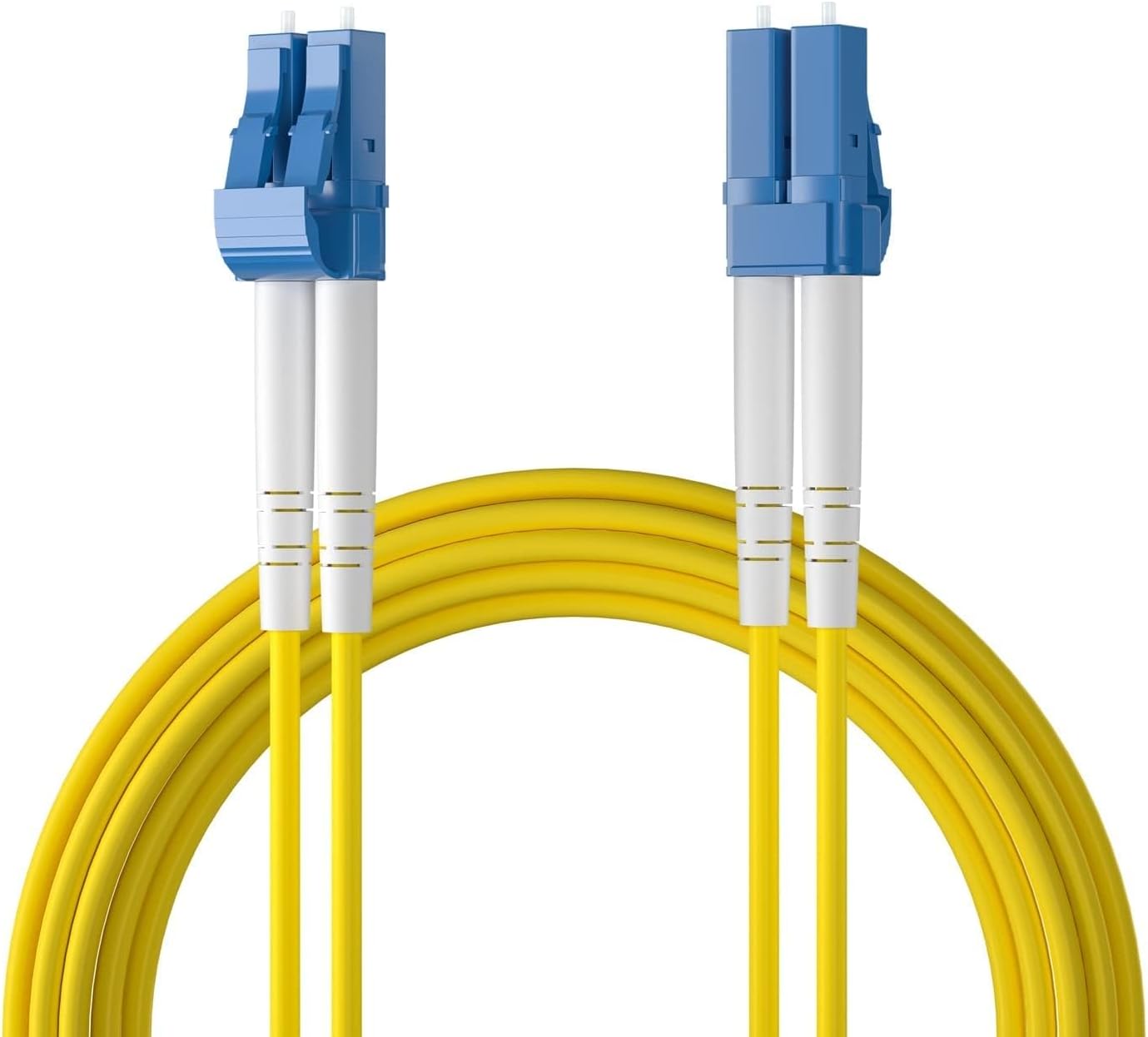

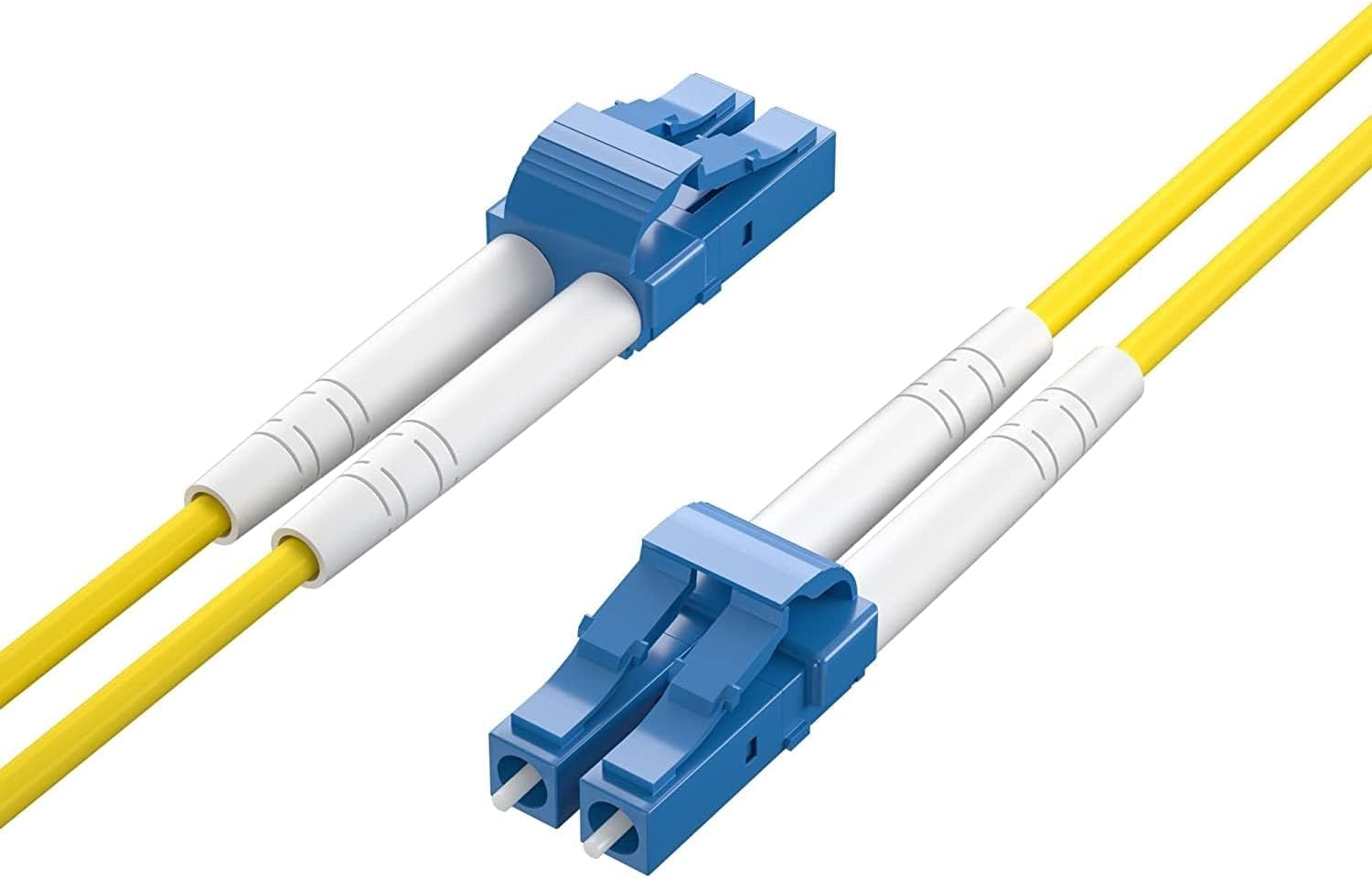

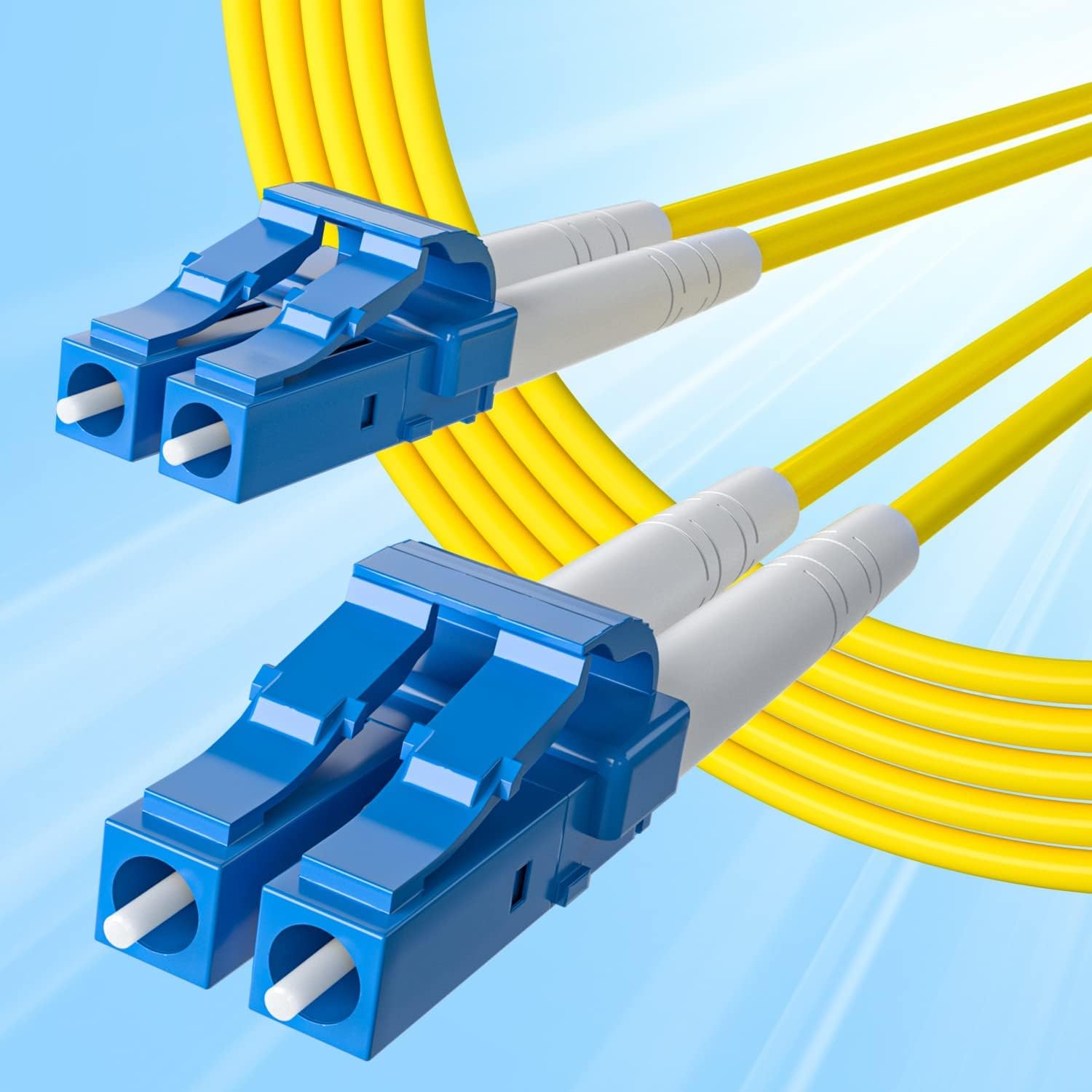

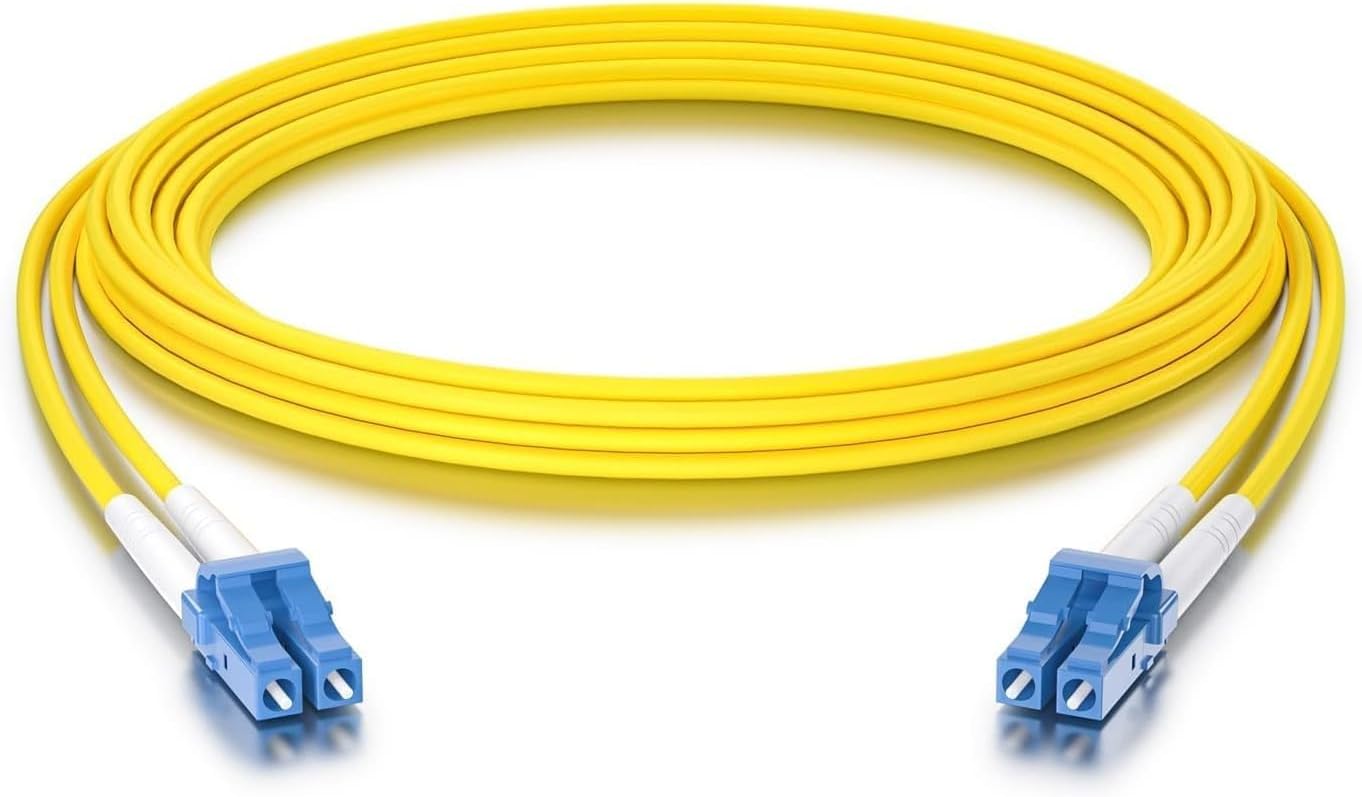

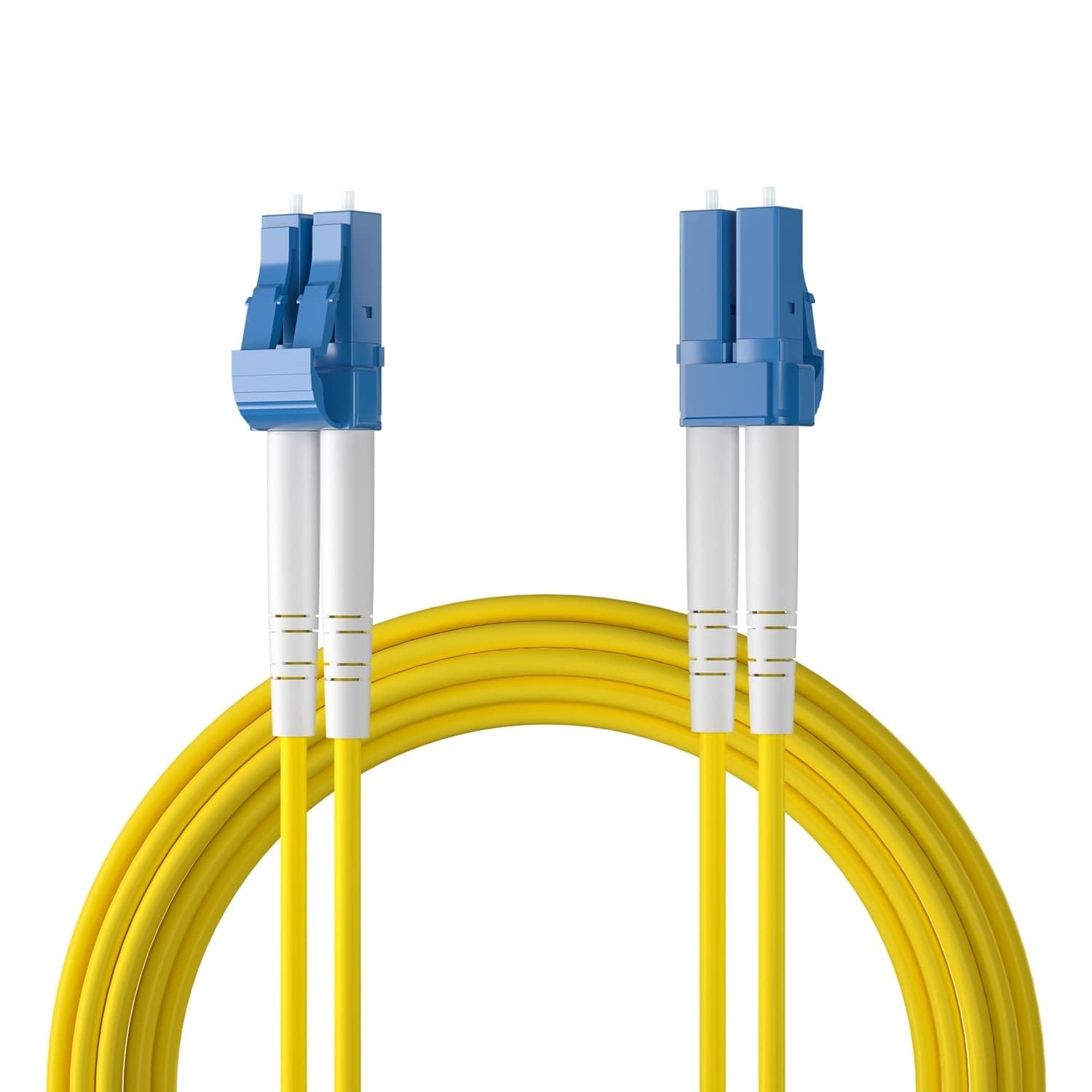

Ipolex LC to LC Fiber Patch Cable Single Mode 10m (4-Pack)

Caratteristiche principali

• Widely Used: OS2 LC to LC fiber patch cable 10Gb is fast ethernet, local area networks, wide area networks, fiber channel, data center, gigabit ethernet speeds and more, for for 100G-LR4, 40G-LR4, 40G-IR4, 25G-LR, 10GBase-ER, 10GBase-ZR, 10GBase-IR, 1000Base-LX, 1000Base-EX, SFP+ and QSFP+ transceivers etc.
• Transmission Distance: 1Gb ethernet distance of 40km @1310nm; 10Gb ethernet distance of 80km @1550nm; 25Gb ethernet distance of 10km @1310nm; 40Gb ethernet distance of 10km @1271-1331nm; 100Gb ethernet distance of 10km @1310nm.
• Physical Characteristics: minimum bend radius 7.5mm, 9/125μm, LSZH, 100% insertion loss test, MMF, Insertion loss≤0.3 dB, Return loss≥55 dB, insensitive to bending ensures small optical loss and stable transmission applicable to SAN network cabinets that require 20.
• Standards Compliant: TIA/EIA 568-C.3 / 604-10 / 492AAAA, IEC60793-2-10 A1b, CE and RoHS. PVC/LSZH fiber cable (low smoke zero halogen); insertion loss fiber core; zirconia ceramic ferrules.
• Flexible installation: the optical patch cable with adjustable clips and removable dust caps that protect the fibres during installation. Embossed A/B position labels on the duplex clip allow quick identification during installation, testing and troubleshooting.
