Waveshare PCIe to M.2 4G/5G and USB 3.2 HAT

Caratteristiche principali

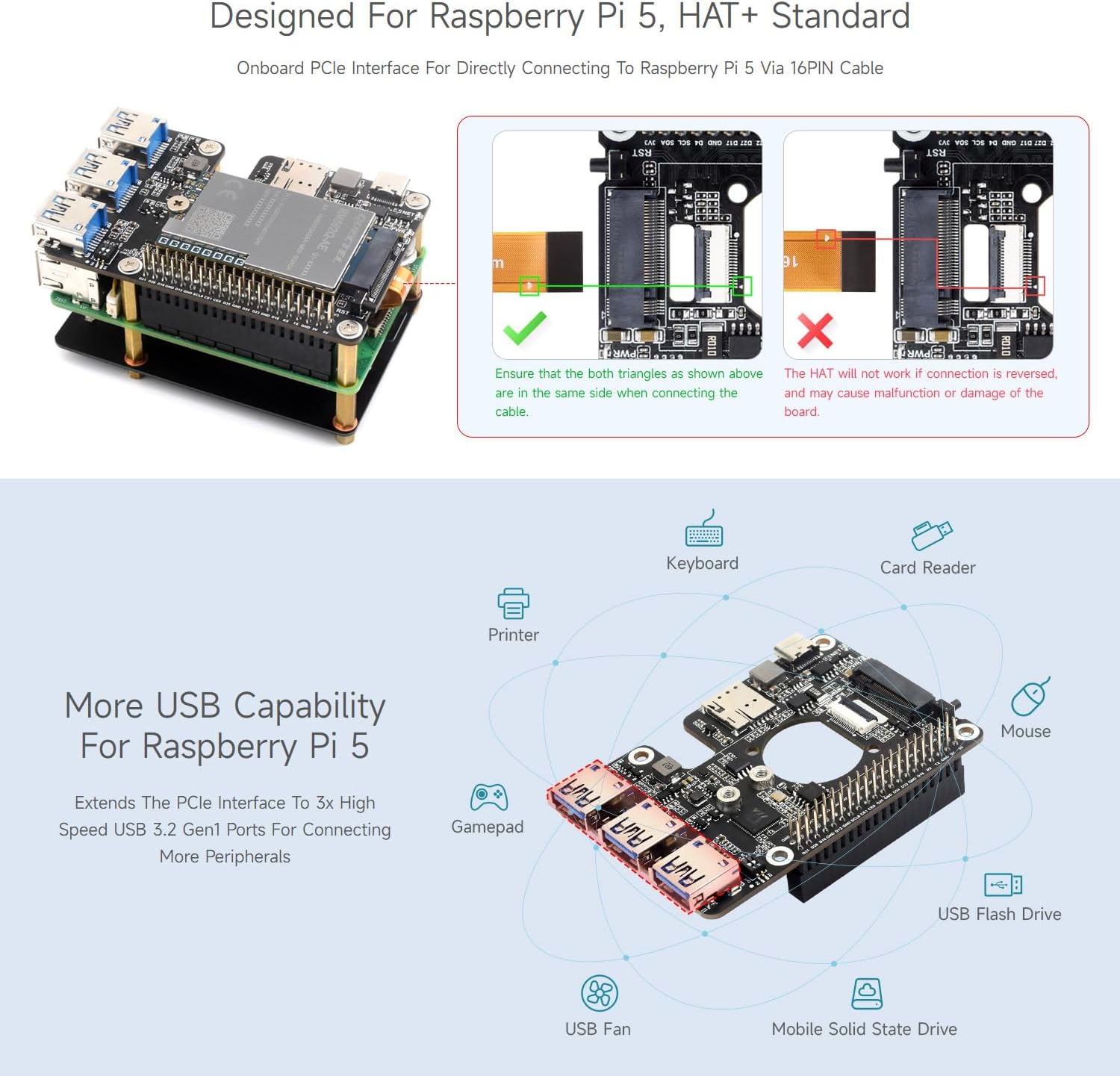

• ✅Designed for Raspberry Pi 5, HAT+ standard design with onboard I2C EEPROM, and supports Raspberry Pi 40PIN GPIO stackable expansion. Extends 3x high-speed USB 3.2 Gen1 ports for connecting more peripherals

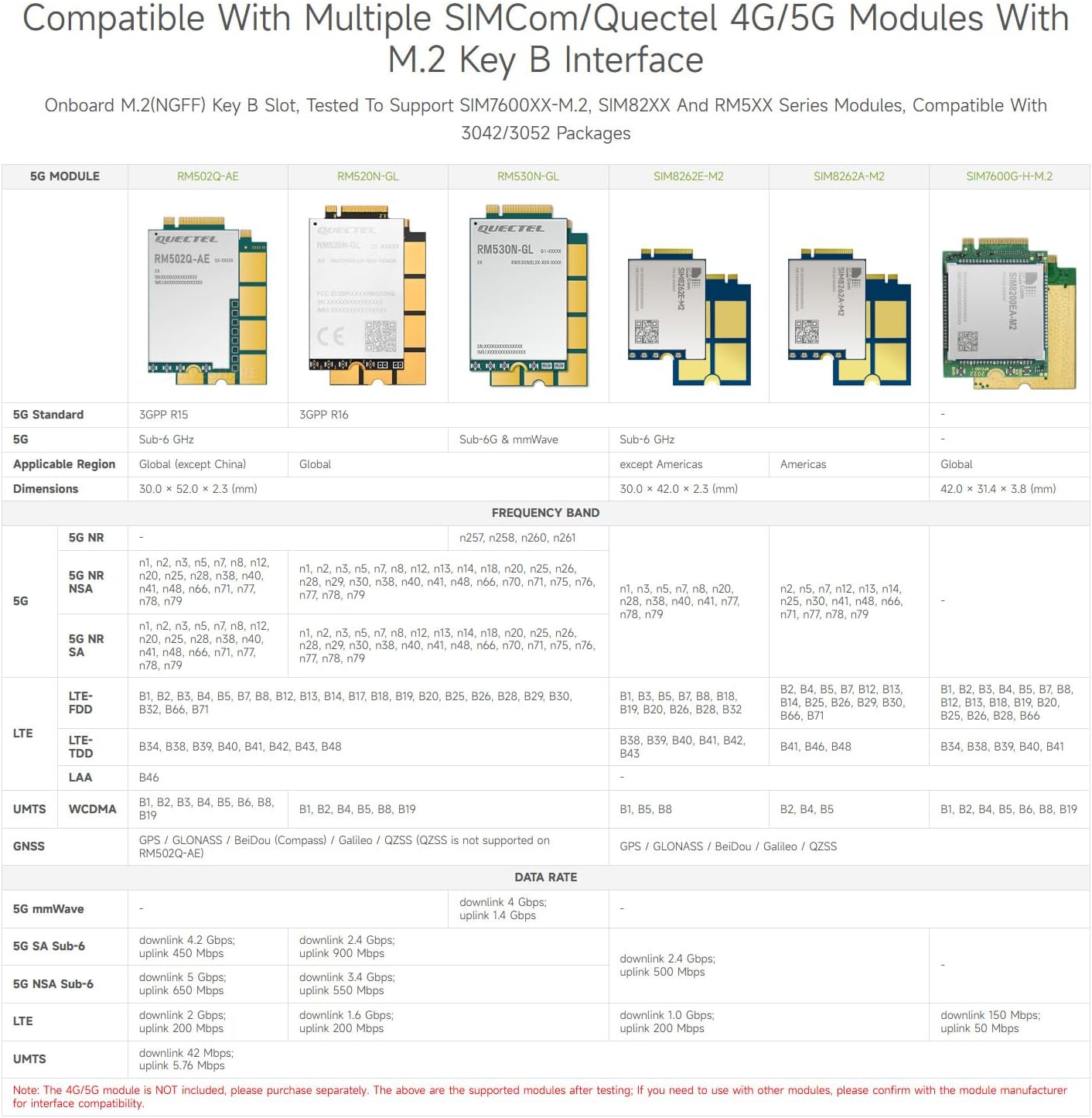

• ✅Onboard M.2(NGFF) Key B slot, supports SIM7600XX-M.2, SIM82XX and RM5XX series 4G/5G modules and is compatible with 3042/3052 packages. Onboard Type-C port for connecting to a PC for 4G/5G networking, debugging and firmware updating, or external power supply input

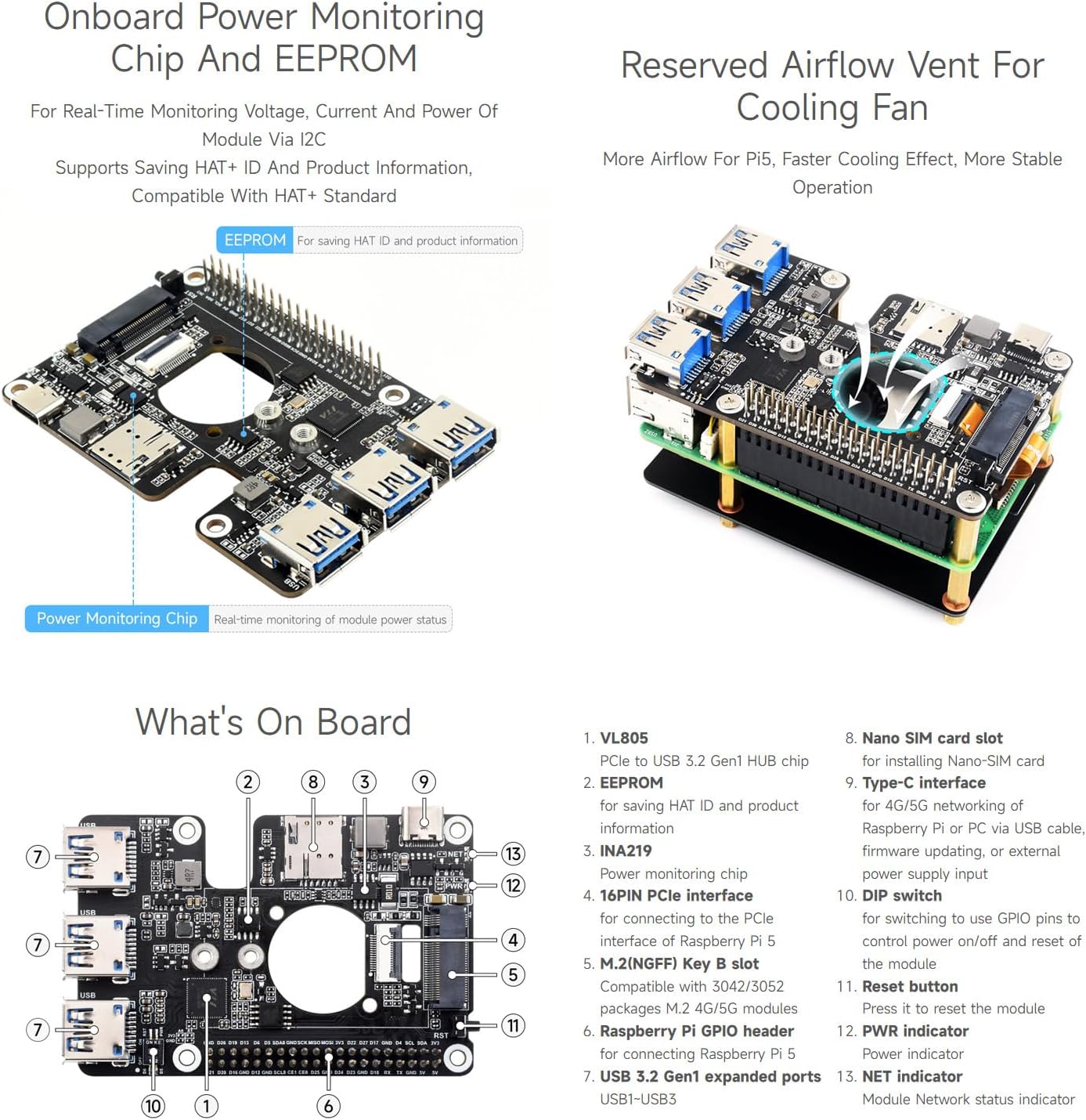

• ✅Onboard power monitoring chip for real-time measurement of voltage, current and power. Onboard SIM card slot for NANO-SIM card

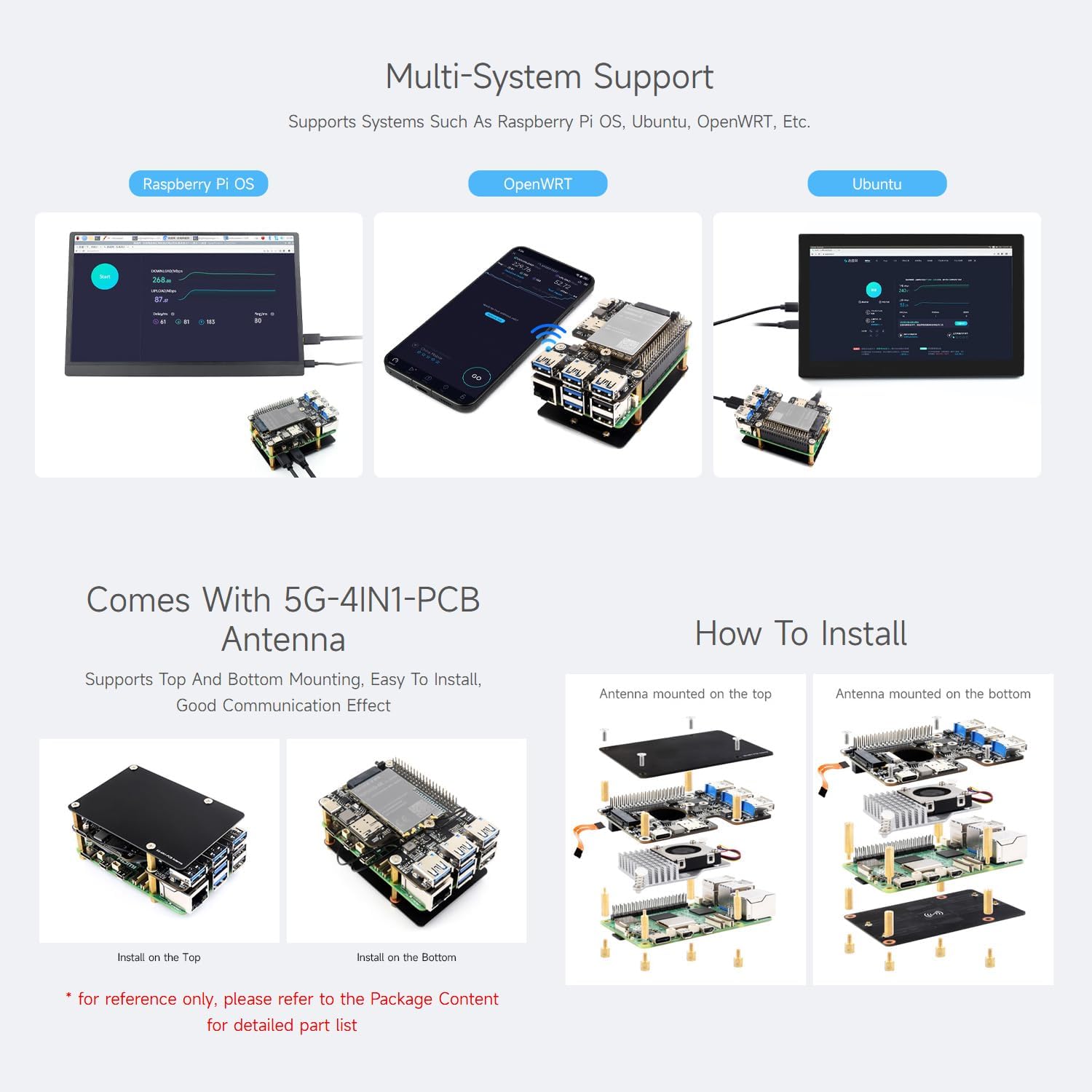

• ✅Onboard Reset button, Power and Network indicators for easy debugging and monitoring the operating status. Comes with customized 5G-4IN1-PCB Antenna for neat wiring management, supports top or bottom installation. Reserved airflow vent and mounting holes for cooling fan to increase airflow and provide better heat dissipation

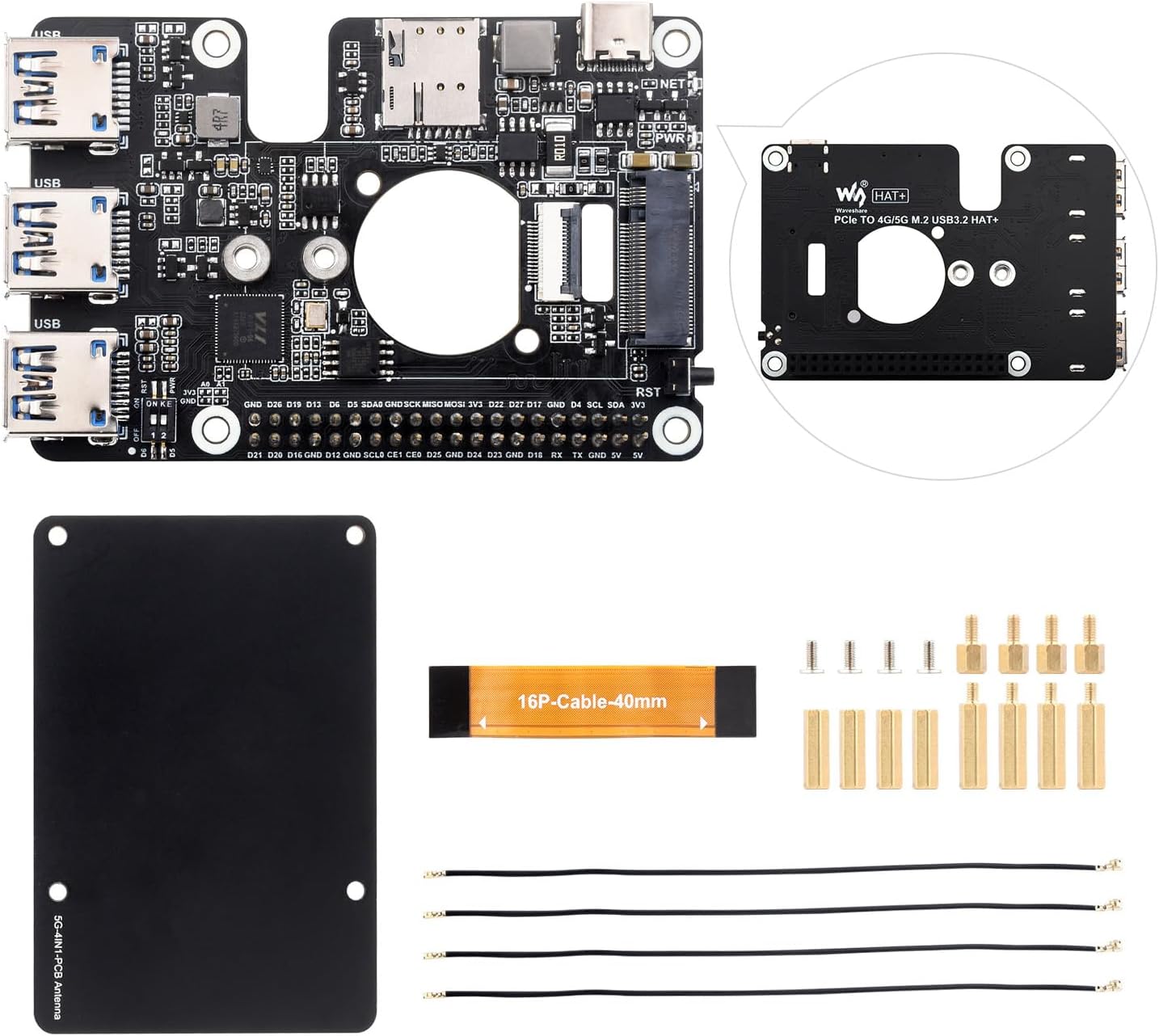

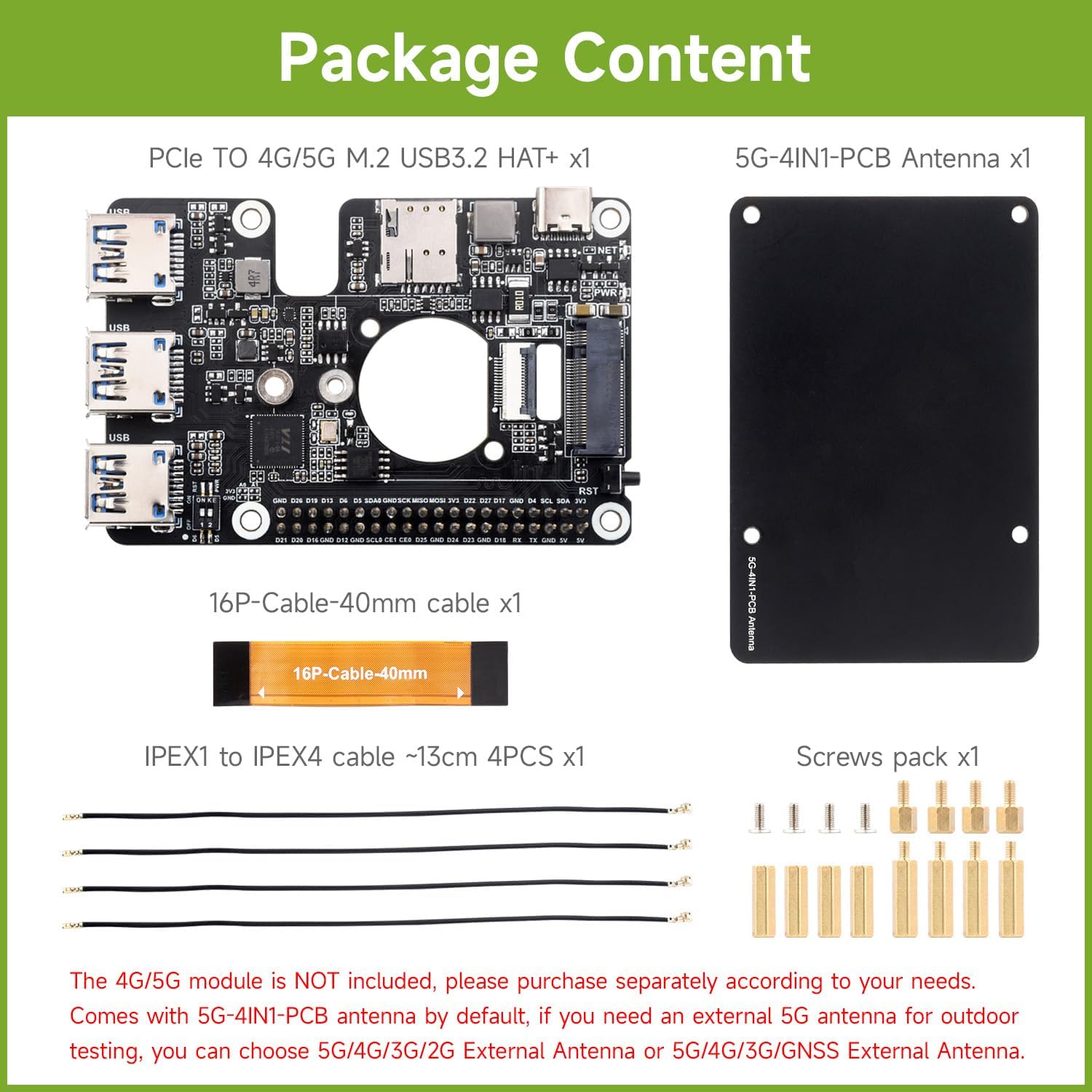

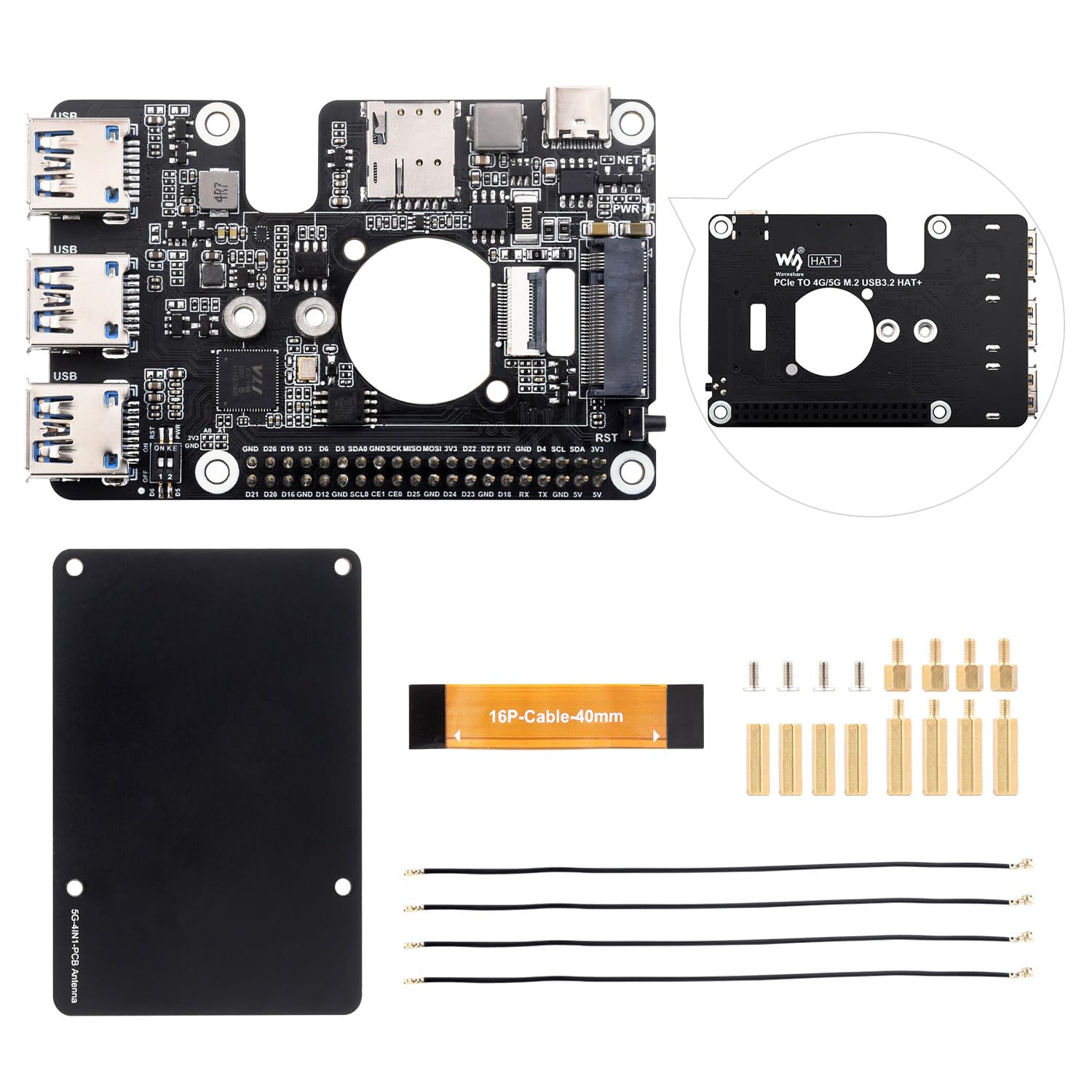

• ✅The 4G/5G module is NOT included, please purchase separately according to your needs. Comes with 5G-4IN1-PCB antenna by default, if you need an external 5G antenna for outdoor testing, you can choose 5G/4G/3G/2G External Antenna or 5G/4G/3G/GNSS External Antenna.
